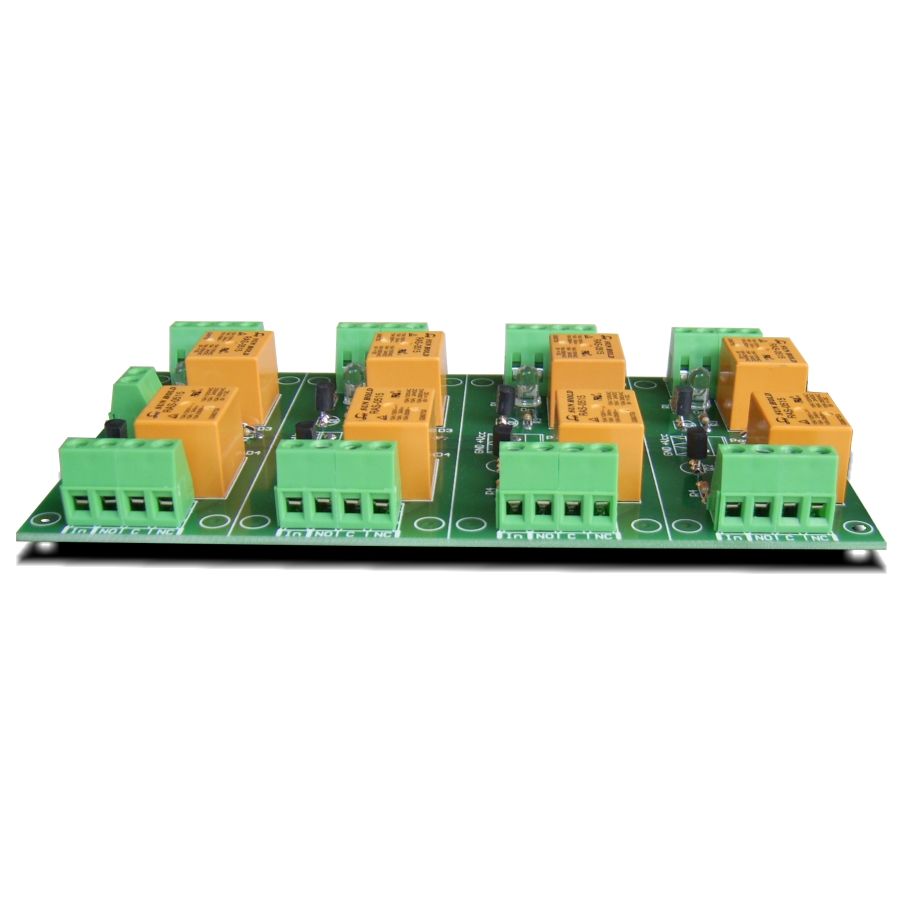

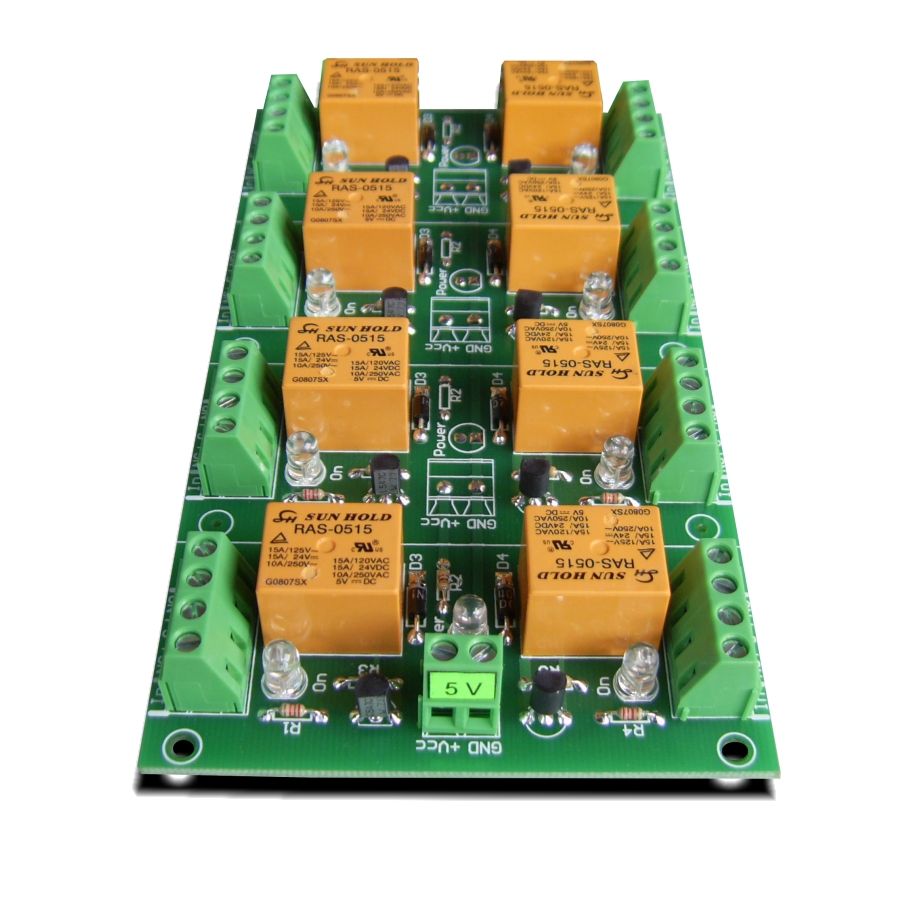

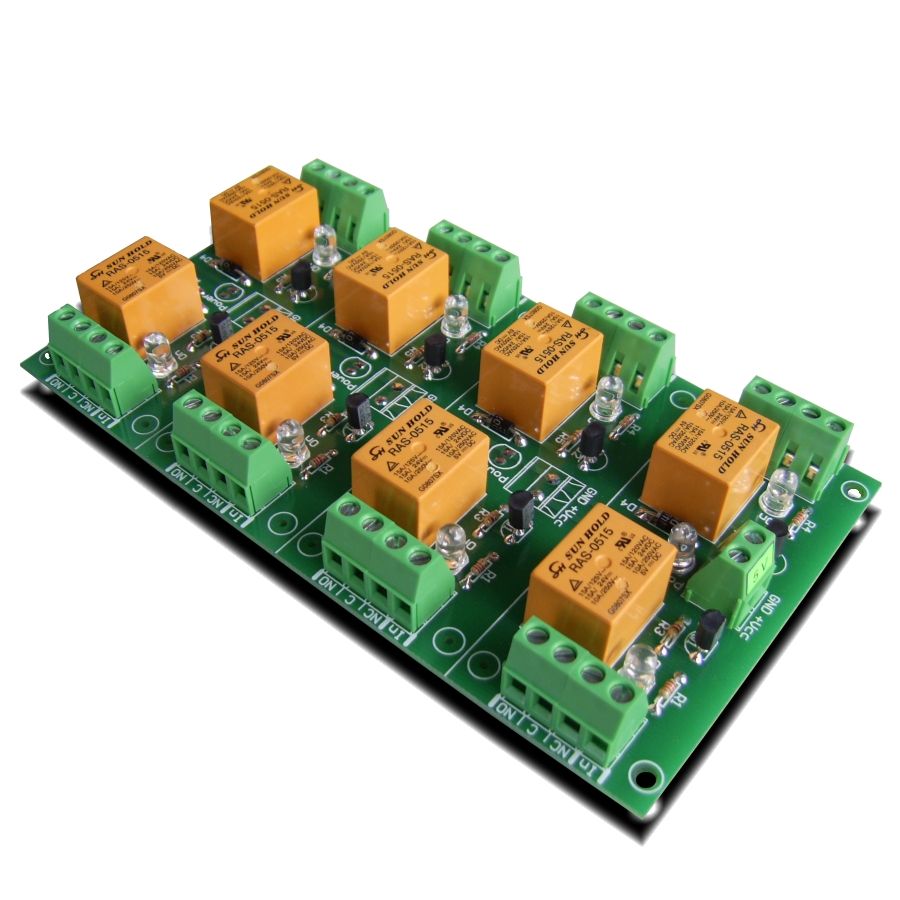

8 Relay Way Output Module (Board) for your PIC, AVR Project - 5V

Description

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by microcontroller (TTL logic).

Buy

Price: $30.35
Quantity:
Send to friend Rate this product Add to wishlist

Supply characteristics

Type      DAE-RB/Ro8-5V
Recommend voltage   VDC  5
Voltage limits Including ripple VDC  4.7...6.3
Nominal input current Voltage 5VDC mA  700
Power dissipated When all relays are ON W 3.5
Protection Against reverse polarity    None



Relay output characteristics

Type      DAE-RB/Ro8-5V
Relay type     RAS-05-15
Relay outputs count     8
Contact type      NO, NC
Current consumption 5 VDC mA  72
Switching parameters
24 VDC
120 VAC
250 VAC
A
A
A
15
15
10



Phisical characteristics

Type     DAE-RB/Ro8-5V
Dimensions
Width
Height
Length
mm
mm
mm
85
20
150
Weight   gr  148

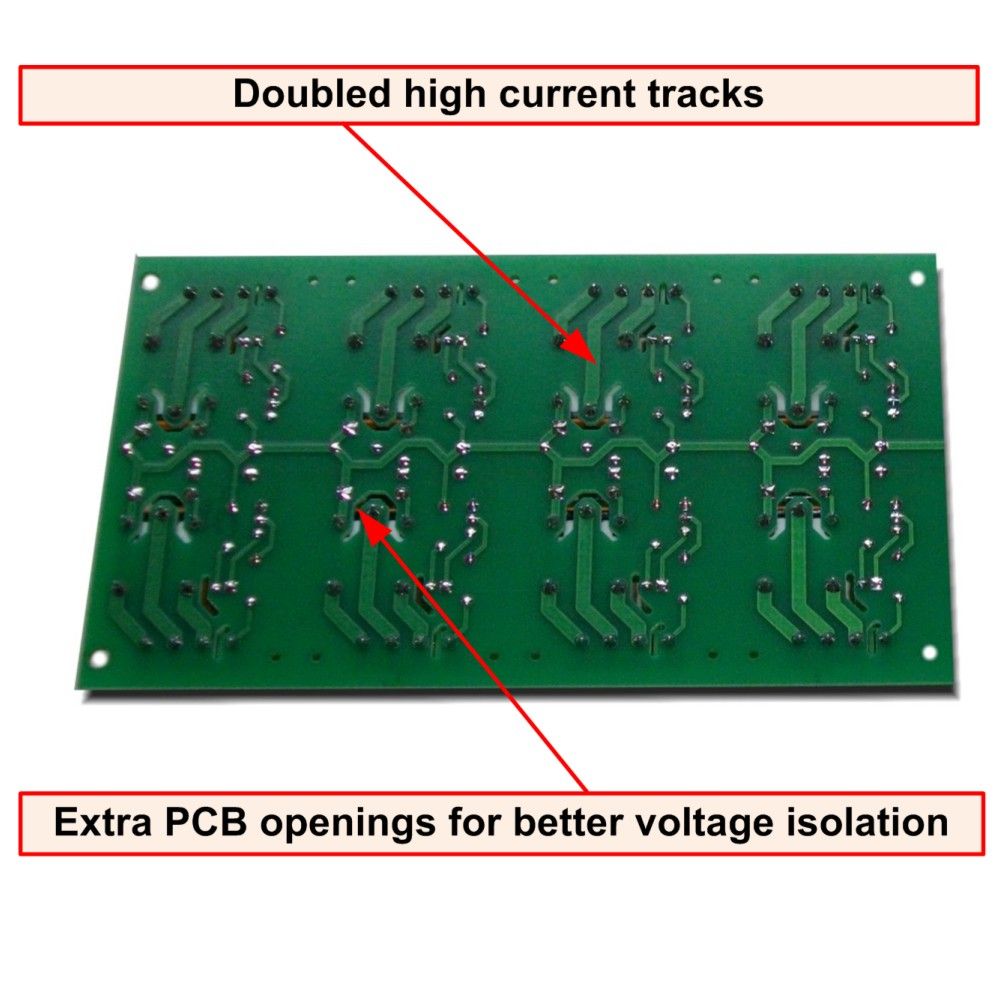

PCB
FR4
Height
Layers
Metalized holes
HAL
White stamp
Solder mask

mm





Yes
1.5
2
Yes
Yes
Yes
Yes
Mounting holes diameter inner side mm  3
Leds
Relays (green)
Power (red)

Yes
Yes



Single relay channel



How to connect inductive loads
