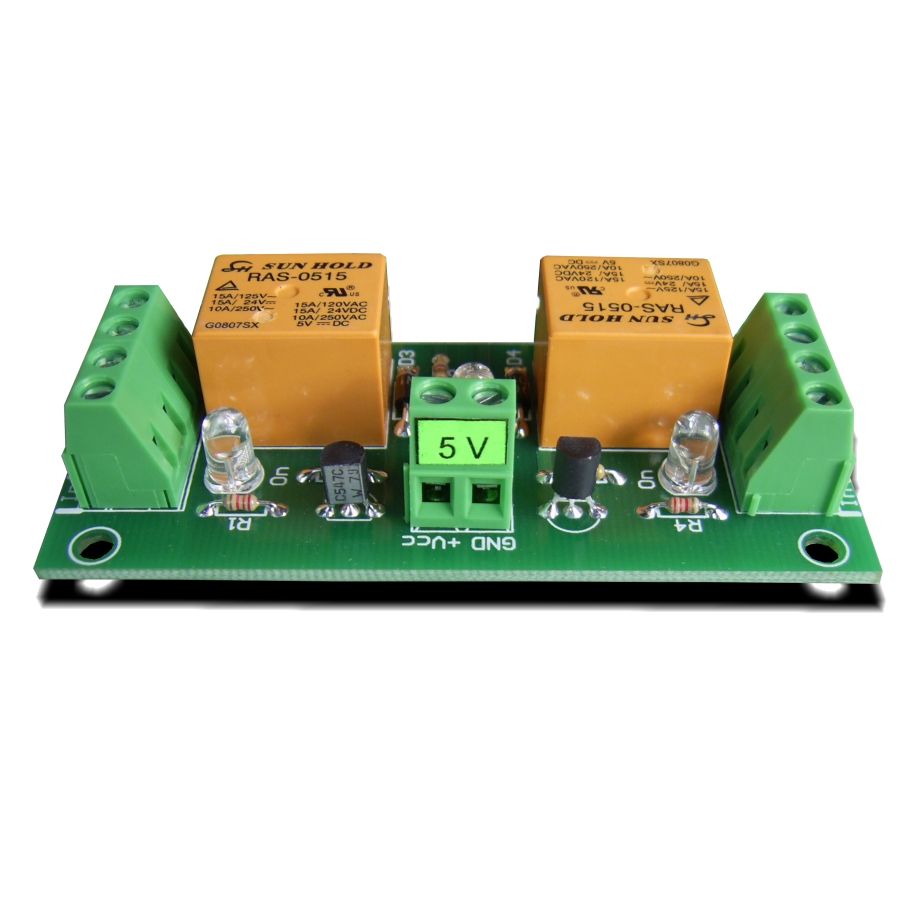

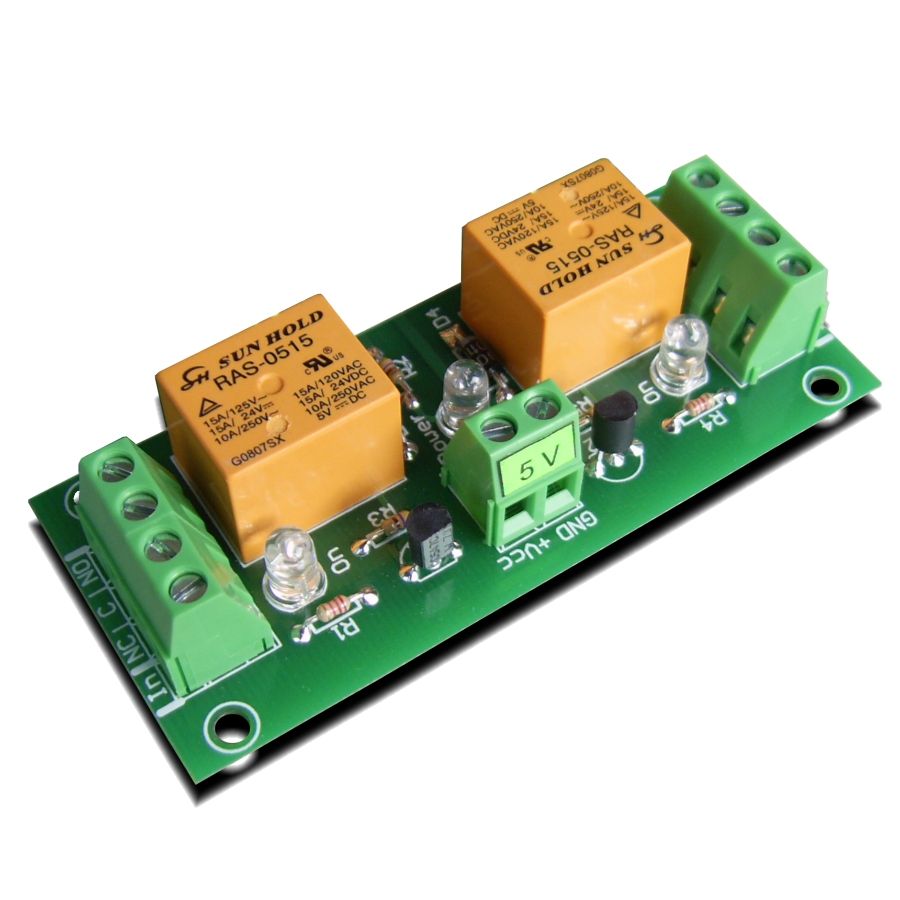

2 Relay Way Output Module (Board) for your PIC, AVR Project - 5V

Description

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by microcontroller (TTL logic).

Buy

Price: $8.55
Quantity:
Send to friend Rate this product Add to wishlist

Supply characteristics

Type     DAE-RB/Ro2-5V
Recommend voltage   VDC 5
Voltage limits Including ripple VDC  4.7...6.3
Nominal input current Voltage 5 VDC mA 200
Power dissipated When all relays are ON W 1.00
Protection Against reverse polarity    None



Relay output characteristics

Type     DAE-RB/Ro2-5V
Relay type     RAS-05-15
Relay outputs count     2
Contact type     NO, NC
Current consumption 5 VDC mA 72
Switching parameters
24 VDC
120 VAC
250 VAC
A
A
A
15
15
10



Phisical characteristics

Type     DAE-RB/Ro2-5V
Dimensions
Width
Height
Length
mm
mm
mm
85
20
37
Weight   gr 40
PCB
FR4
Height
Layers
Metalized holes
HAL
White stamp
Solder mask

mm





Yes
1.5
2
Yes
Yes
Yes
Yes
Mounting holes diameter inner side mm 3
Leds
Relays (green)
Power (red)

Yes
Yes



Single relay channel



How to connect inductive loads

2 Relay Way Output Module (Board) for your PIC, AVR Project - 12V

2 Relay Way Output Module (Board) for your PIC, AVR Project - 12V

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by microcontroller (TTL logic). The relay board is with relays JQC-3FC/T73 or with relays RAS-1215
Price: $7.00
Quantity:
2 Relay Way Output Module (Board) for your PIC, AVR Project - 24V

2 Relay Way Output Module (Board) for your PIC, AVR Project - 24V

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by microcontroller (TTL logic).
Price: $8.55
Quantity:
