LPT 8 Relay Board for your PIC, AVR Project - 12V

Description

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by LPT printer port of your PC.

Buy

Price: $33.00
Quantity:
Send to friend Rate this product Add to wishlist

The kit includes

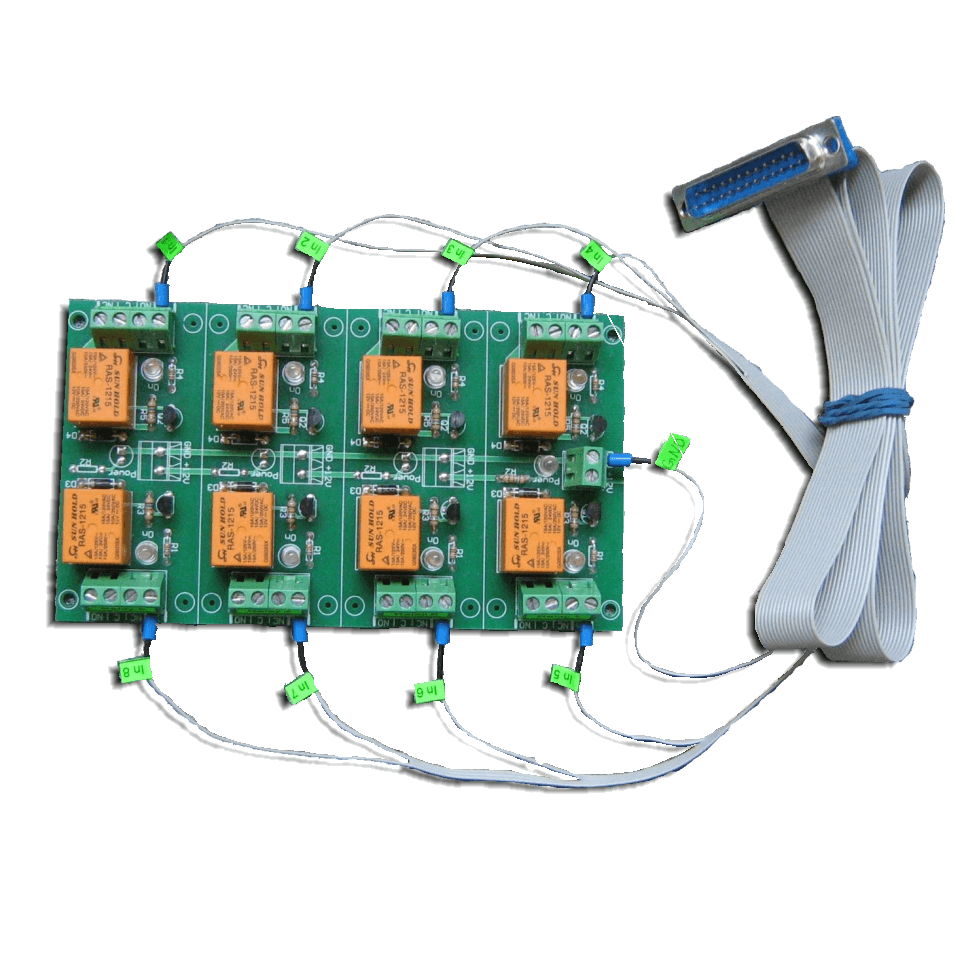

  • Eight channel relay board - DAE-RB/Ro8-12V
  • Flat cable with labels for LPT printer parallel port approximate 100cm length

Supply characteristics

Type     DAE-RB/Ro8-12V
Recommend voltage   VDC 12
Voltage limits Including ripple VDC 11...14.4
Nominal input current Voltage 12 VDC mA 300
Power dissipated When all relays are ON W 3.60
Protection Against reverse polarity   None



Relay output characteristics

Type     DAE-RB/Ro8-12V
Relay type     RAS-12-15
Relay outputs count     8
Contact type     NO, NC
Current consumption 12 VDC mA 30
Switching parameters
24 VDC
120 VAC
250 VAC
A
A
A
15
15
10



Phisical characteristics

Type     DAE-RB/Ro8-12V
Dimensions
Width
Height
Length
mm
mm
mm
85
20
150
Weight   gr 148
PCB
FR4
Height
Layers
Metalized holes
HAL
White stamp
Solder mask

mm





Yes
1.5
2
Yes
Yes
Yes
Yes
Mounting holes diameter inner side mm 3
Leds
Relays (green)
Power (red)

Yes
Yes



Single relay channel



How to connect inductive loads
