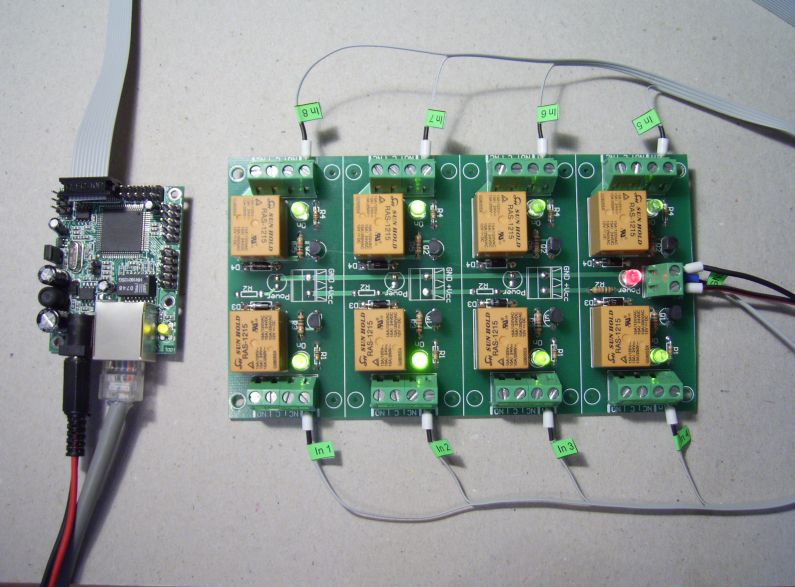

Internet/Ethernet Eight Channel Relay Board - ver.2

General description

This is set of DAEnetIP2 IP controler and Relay card with 8 relays. It is autonomic ethernet device. Just connect the board into your local network and controll it from another PC, located in the same network. We provide DAEnetIP2 Manager utility for the ethernet controler. You may access it also via command line (DOS promt), DRM Software, web browser and Android Software.

Characteristics:

• 8 relays RAS-12-15
• Power supply 12VDC
• Standart protocols: ARP, IP, ICMP (ping), SNMP v1, Web, TFTP
• Two MAC addresses protection
• It can be configurated with SNMP requests - IP,MAC....
• Integrated WEB server for all functions/parameters access
• Windows Java test application example (souce code is provided)
• Access via command line
• Supported by DRM Software

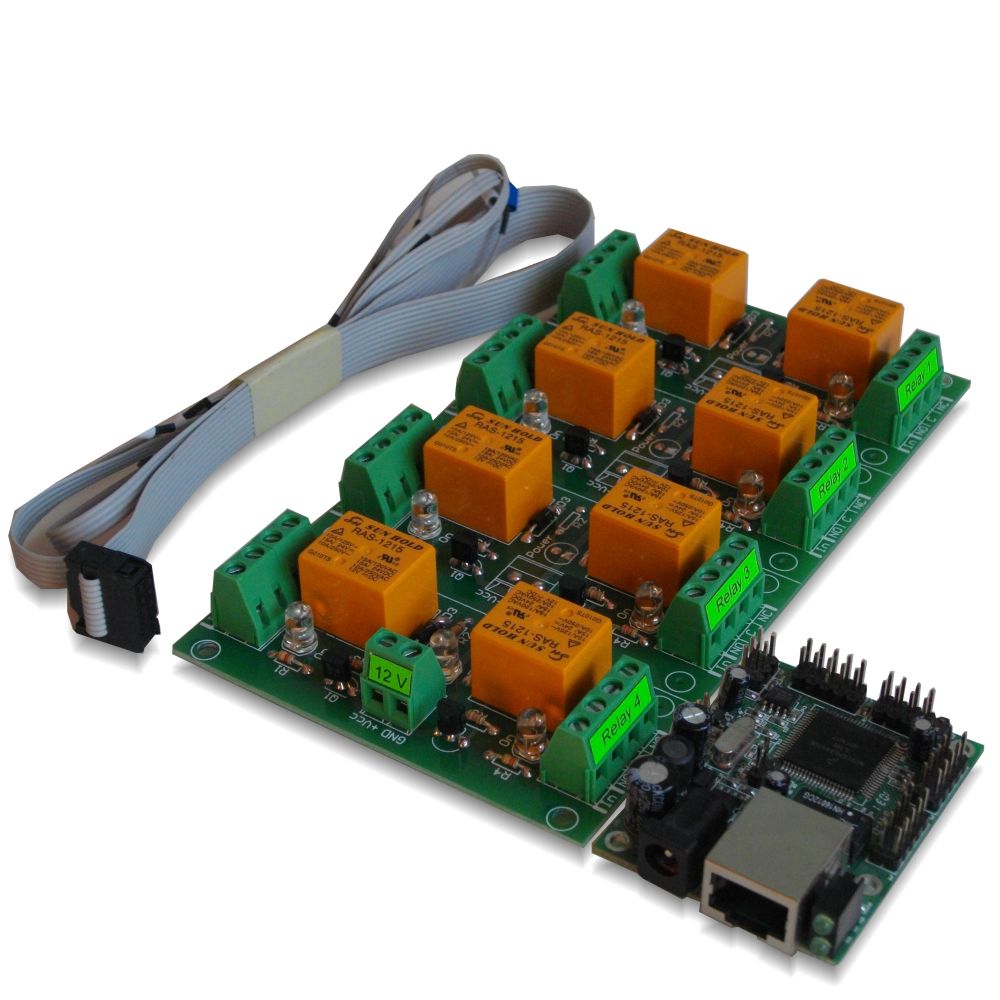

The kit includes:

• IP controller (Ethernet controller) - DAEnetIP2
• 8 Output Channel Relay Board - DAE-RB/Ro8-12V
• Flat ribbon labeled cabel

DAE-RB/Ro8-12V supply characteristics

Relay output characteristics

DAE-RB/Ro8-12V Phisical characteristics

Schematics

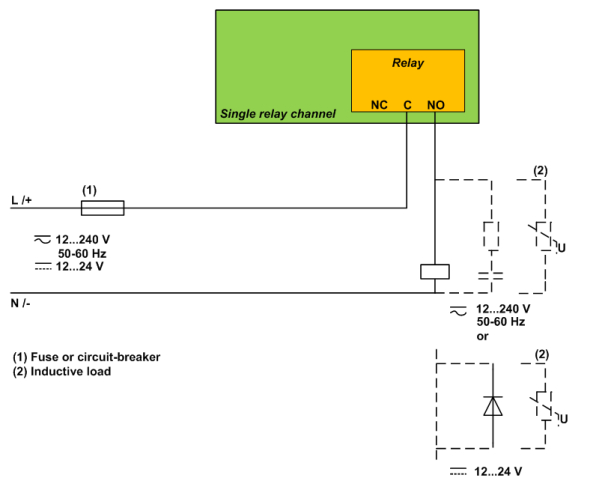

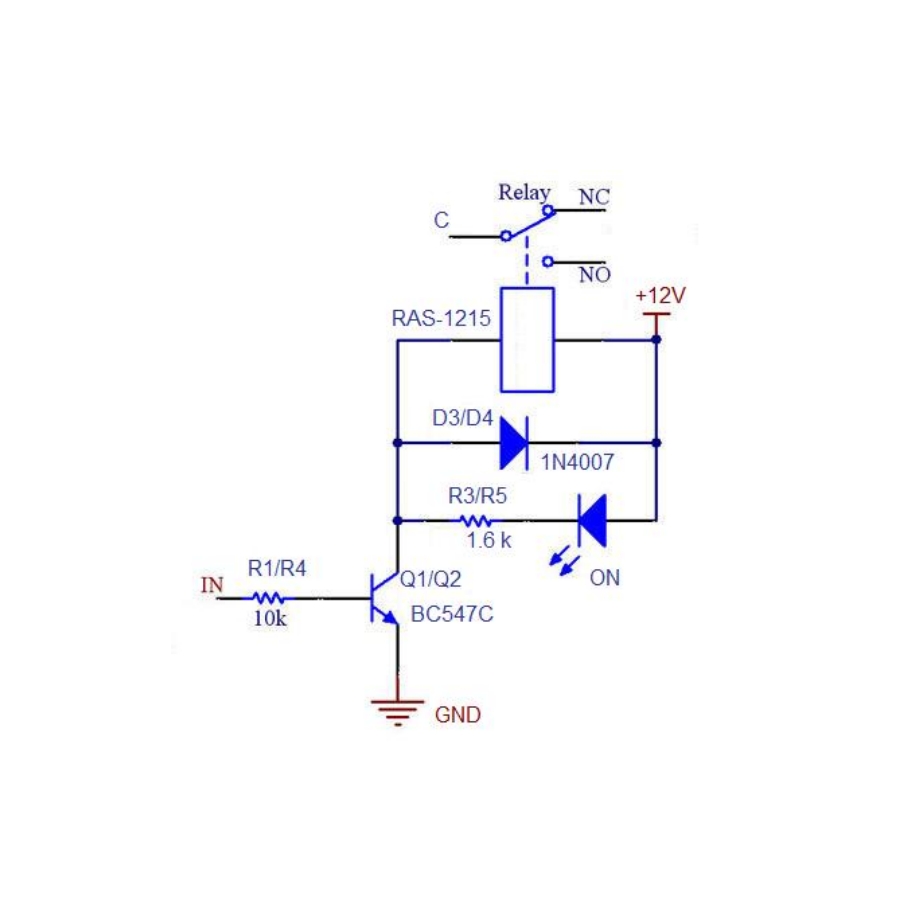

Single relay channel	How to connect inductive loads

General description

This Ethrnet controller (DAEnetIP2) is autonomic ethernet device with 16 digital outputs and 8 analog inputs. Just connect the board into your local network (public IP) and controll it from another PC, located in the same network (internet). You may controll this  Ethernet Controller via Win application, command line (DOS promt), browser with javascript. For users who want to create your own application, working example in Java is provided with full source code and links with the SNMP libraries are shown in the auction.

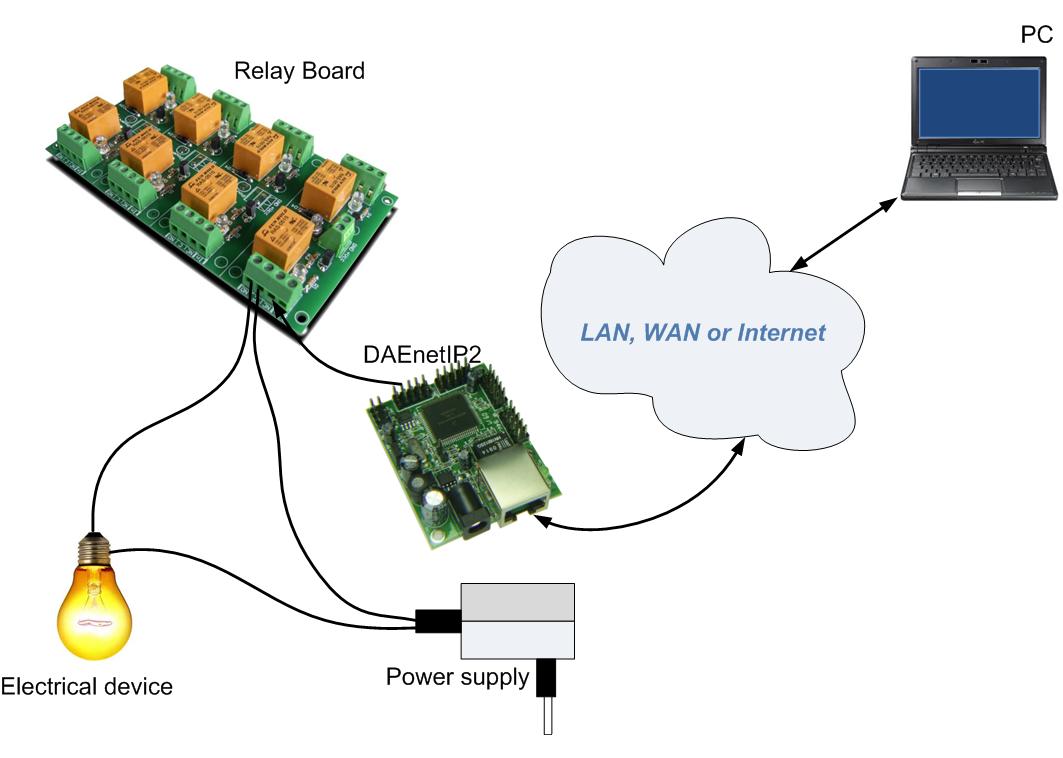

DAEnetIP2 application examples

• Controlling automation processes via local network - monitoring temperature, pressure...
• Controling, lights, relays, electromagnetics, motors and other electrical devices via Local network or internet.
• Restart different switches via Local network

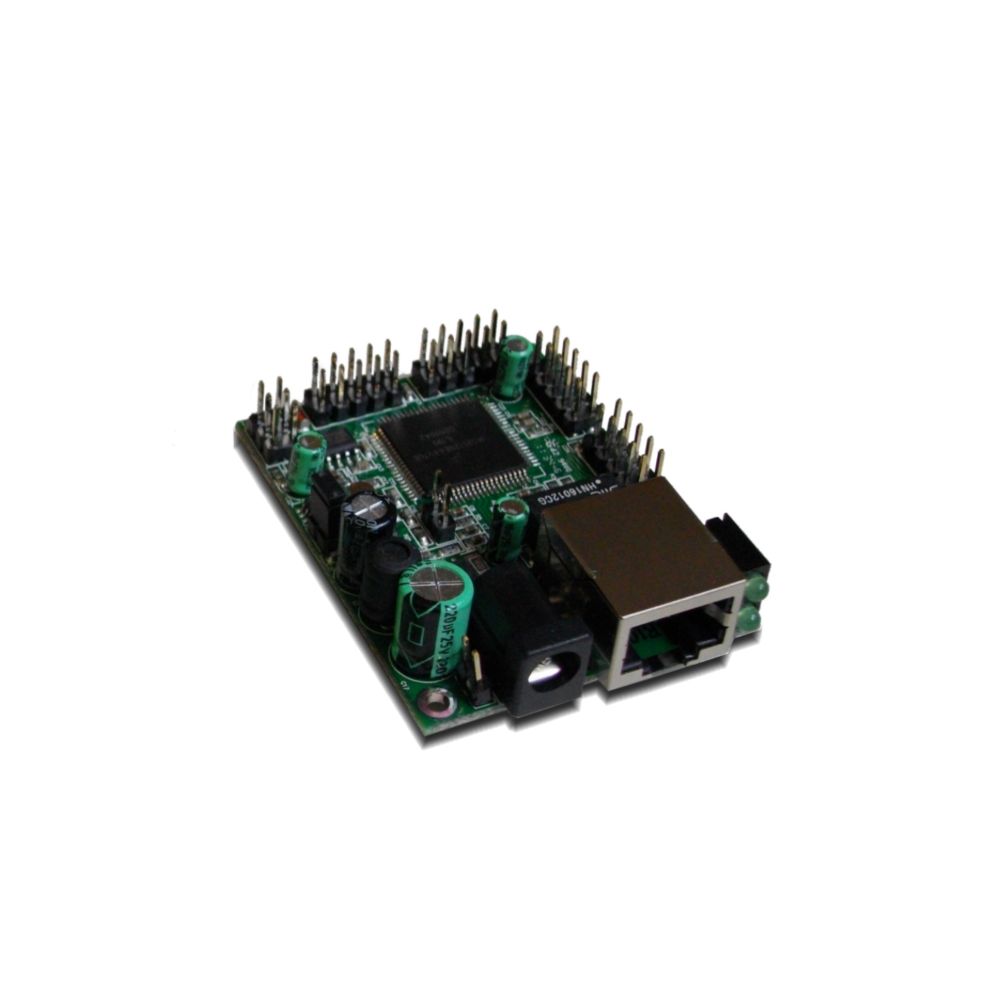

DAEnetIP2 is autonomic network device, supporting 10Mb/s Ethernet interface. Specification:

• 43x55mm
• 10 Mb Ethernet interface with Link/Activity Led
• Low power consuption (<50mA/12V)
• Power supply 7.5 - 25V
• Standart protocols: ARP, IP, ICMP (ping), SNMP v1, Web, TFTP
• Two MAC addresses protection
• It can be configurated with SNMP requests - IP,MAC,VLAN and many more.
• The MIB file is here
• 2x8 digital outputs
• 1x8 combined analog or digital inputs with 10 bit ADC (0-3.3V)
• Integrated WEB server for all functions/parameters access
• Manual: write to email b_denkov@abv.bg

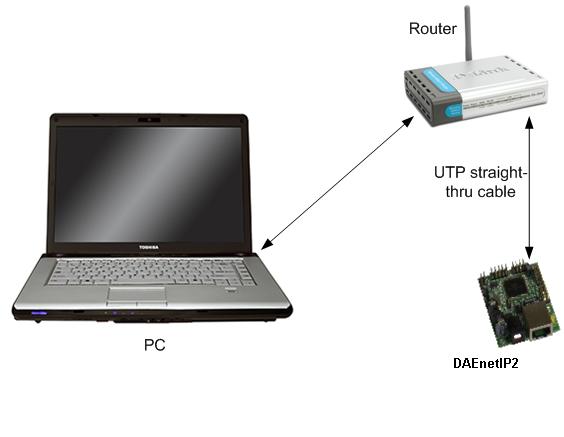

Connection to router

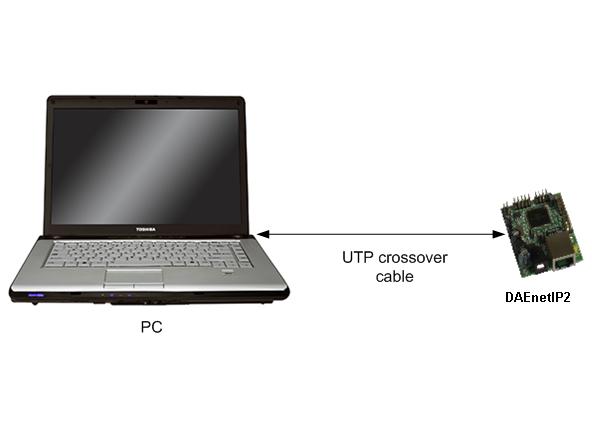

Connection to PC

Power supply

The minimal supply voltage is 7.5 VDC. The maximal voltage is 25 VDC. It is recommended the supply voltage to be 12 VDC. The power consumption is about 0.55 W. The IP controller doesn't have any protection against inverted supply voltage. The middle pin of the power terminal is + 12 V.

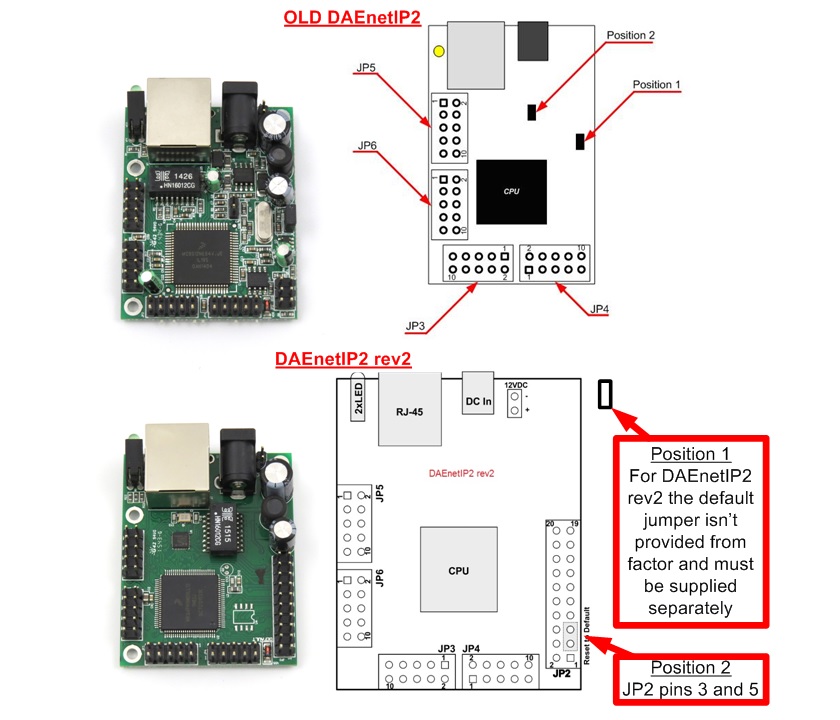

Loading the default settings

The controller has default settings, in case the access is lost or if you use it for first time. There are several steps for loading the default settings:

1. Turn off the power supply of the IP controller.
2. Move the jumper from position 1 to position 2.
3. Turn on the power supply of the IP controller.
4. Move the jumper from position 2 to position 1.
5. Turn off the power supply of the IP controller.
6. Turn on the power supply of the IP controller.

DAEnetIP2 default settings

DAEnetIP2 I/O ports description

Legend:
"Free"– the pin is free and defined for the user.
"XXXXXX" - the pin is reserved
"In" the pin is input
"Out" - the pin is output
"Ain"– analog input

Note that the relay board is connected to P5 digital output port.

Product installation

1. Connect the DAEnetIP2 with PC or router with UTP cable.
2. Supply the DAEnetIP2 controller (12VDC stabilized recommend)
3. Your PC IP should be in the DAEnetIP2 network initially. So it is recommend to be 172.16.100.1. If you have router make the router IP 172.16.100.3
4. Open web browser and type 172.16.100.2 – username/password are “admin”/”admin”
5. Access the module via Web/command line - snmp or DAEnetIP2 Manager.

These steps are common, it doesn't matter what is the way in you controll the Ethernet module.

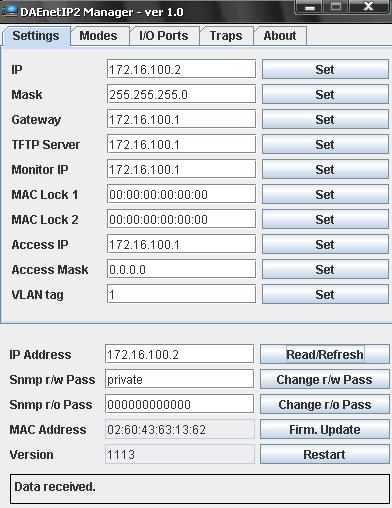

 DAEnetIP2 Manager

DAEnetIP2 Manager is configuration utility for Denkovi DAEnetIP2 controller

DAEnetIP2 uses SNMP protocol. This is configuration utility for DAEnetIP2 controller. They are not included all SNMP functions in it, but basic settings can be done.

For more information about DAEnetIP2 Manager, screen-shots and detailed description - here

Download the last version (install package) - DAEnetIP2Manager.exe

Download the last version (install archive) - DAEnetIP2Manager.rar

List with currently supported devices - here

For bugs, suggestions or more information: b_denkov@abv.bg

Control via web browser

Your web browser have to supports javascript. Just write the IP address of the controller in the address bar and you will see the page, which is integrated in the controller (it has small built in server). The default username/password are admin/admin.

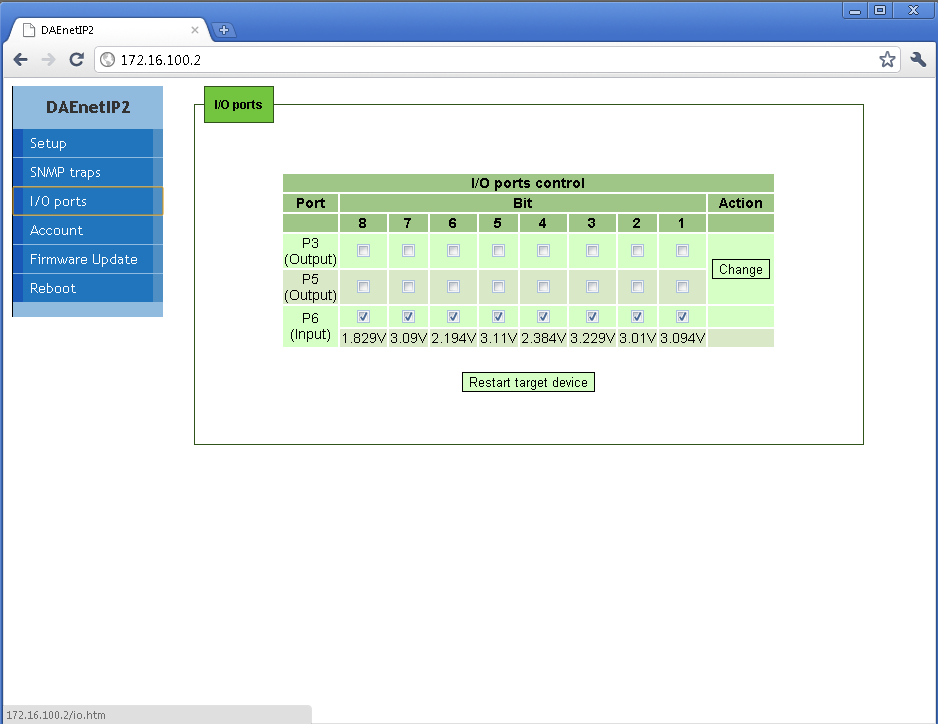

I/O Ports control/monitor. Note that the analog port P6 has 8 checkboxes. Each of them represents convertion of its analog port level according the rule (if Vain<1.65V =>Level="0" else Level ="1"). This is software convertion.

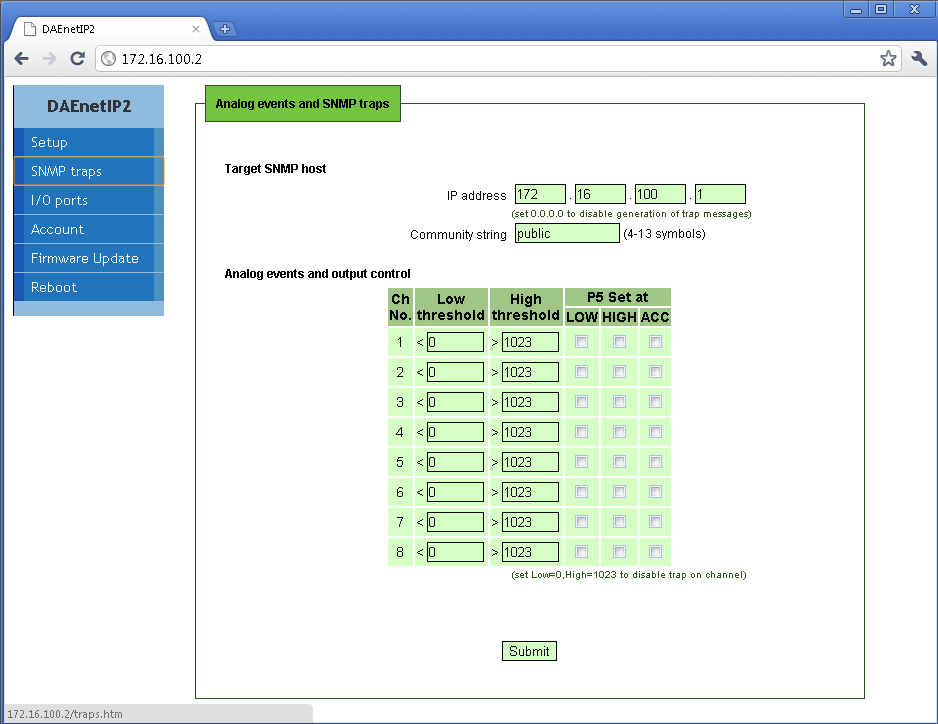

Traps/P5 control. DAEnetIP2 can send traps if some analog input changes its level bellow/above some threshold (Low/High).
The same logic can be used for setting one of the digital outputs port - JP5 according analog input port JP6.

Command line (DOS promt)

Steps for Install net-snmp library. In this way you will be able to control the ethernet controller with command line.

1. Download the last version net-snmp binary for windows from http://net-snmp.sourceforge.net/download. The file must look like net-snmp-X.X.X.X-X.win32.exe
2. Install the downloaded file. Leave the default options. The packet will be install in c:\usr by default.
3. Download the DAEnetIP2 MIB file from here
4. Copy the mib file here c:\usr\share\snmp\mibs
5. Add new line in the file c:\usr\etc\snmp\snmp.conf with the "mibs all" directive.
6. Now you can test different commands for OID access, supported by this module. Their names you may see in the DAEnetIP2.mib file.

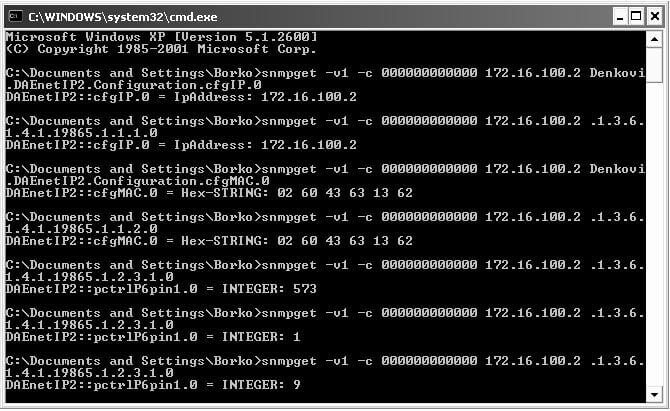

SNMPGET examples

1. Get DAEnetIP2 IP address
   snmpget -v1 -c 000000000000 172.16.100.2 Denkovi.DAEnetIP2.Configuration.cfgIP.0
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.1.1.0
2. Get the MAC Address
   snmpget -v1 -c 000000000000 172.16.100.2 Denkovi.DAEnetIP2.Configuration.cfgMAC.0
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.1.2.0
3. Get P6.1 - This will read analog input 1 level. The rsult is from 0 up to 1023.
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.3.1.0
4. Get P6.8 This will read analog input 8 level. The rsult is from 0 up to 1023.
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.3.8.0
5. Get the whole P6 (This will return a byte number. Each bit is converted analog input value. This can be used for digital inputs reading of P6)
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.3.33.0
6. Get P3.1 - This will read digital output P3.1 level
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.1.0
7. Get P3.8 - This will read digital output P3.8 level
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.8.0
8. Get the whole P3
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.33.0
9. Get P5.1 - This will read digital output P5.1 level
   snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.1.0
10. Get P5.8 - This will read digital output P5.8 level
    snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.8.0
11. Get the whole P5
    snmpget -v1 -c 000000000000 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.33.0

SNMPSET examples

1. Set DAEnetIP2 IP address
   snmpset -v1 -c private 172.16.100.2 Denkovi.DAEnetIP2.Configuration.cfgIP.0 a 172.16.100.3
   snmpget -v1 -c private 172.16.100.3 .1.3.6.1.4.1.19865.1.1.1.0 a 172.16.100.3
2. Set P3.1 - This will set pin 1 from digital output port P3 in '0' (Low level)
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.1.0 i 0
3. Set P3.8 - This will set pin 1 from digital output port P3 in '1' (High level)
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.8.0 i 1
4. Set the whole P3 - This will set all the 8 pins from digital output port P3 in '1'
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.33.0 i 255
5. Set P5.1 - This will set pin 1 from digital output port P5 in '0' (Low level)
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.1.0 i 0
6. Set P5.8 - This will set pin 1 from digital output port P5 in '1' (High level)
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.8.0 i 1
7. Set the whole P5 - This will set all the 8 pins from digital output port P5 in '1'
   snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.2.33.0 i 255

DRM Software

Denkovi Relay Manager (DRM) is universal software for controling all kinds of Denkovi USB, VCP and SNMP relay boards

DRM Software will hep you to save money for expensive softwares and time in programming. It allows you to switch ON/OFF your devices at particular date and time, turn ON/OFF the relays with pulses or control them via specific sequence. If you have one of our relay boards from this list you may turn your PC in powerful automation tool.

DRM Software image - control mode for Internet / Ethernet Two Channel Relay Board

For more information about DRM Software, screenshots and detailed description - here

Download the last version (install package) - DRMsetup.exe

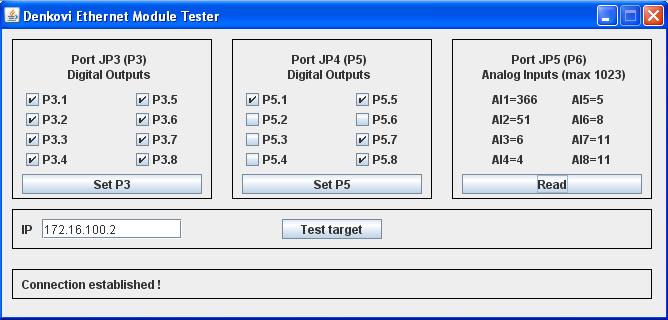

Java example

This is starting point demo application for those who are familiar with Java language and want to build custom application. The source of this application is here and it is free. It demonstrates how to make your own application for offered Ethernet module. Just open the project and make your own GUI. In the project it is included SNMP library, the official download page - here. If you have questions, suggestions or improvements please e-mail me: b_denkov@abv.bg. The project is built with SDK 3.4.1

Android Application

You may use this inexpensive but very useful application for your Android smart phone. You may controll DAEnetIP2 digital outputs, control the 8 relays or read the DAEnetIP2 analog inputs. You may also hide the buttons you don't need. With the Gauge functions you may set the measured range and value (C, F, Voltage...). The application is marketed by iSwitch, LLC.

Download it from the Android Market

DAEnetIP2 + 2 Chn Relay Board + Android Software by iSwitch, LLC

 The App documentation may be downloaded from here

http://www.iswitchllc.com/DAE%20Relay%20Board%20Documentation.pdf

For more information about the Android App you may contact with us or use the developer site link

http://www.iswitchllc.com/DAErelayBoardApp.html
