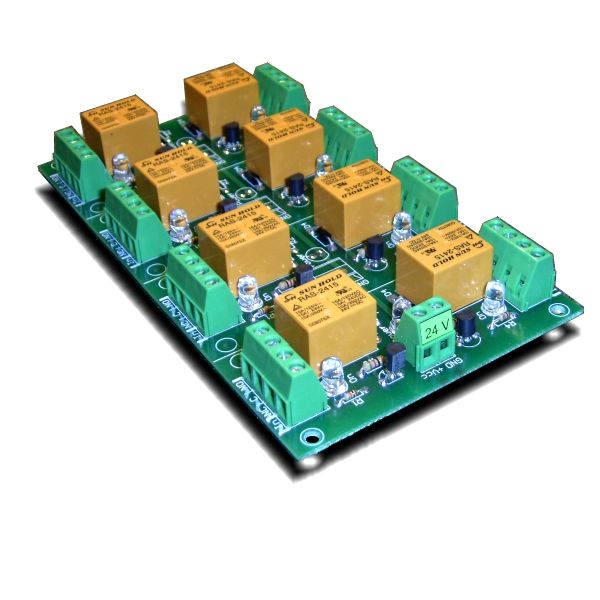

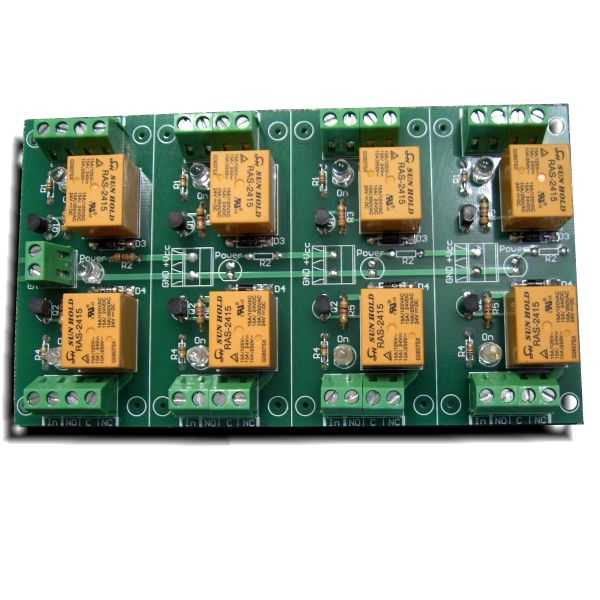

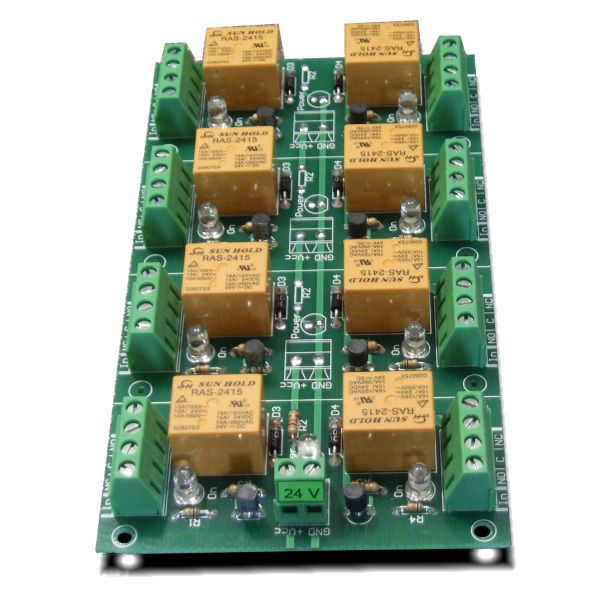

8 Relay Way Output Module (Board) for your PIC, AVR Project - 24V

Description

This is a general purpose relay board for controlling electrical devices. It may be controlled direclty by microcontroller (TTL logic).

Buy

Price: $30.35
Quantity:
Send to friend Rate this product Add to wishlist

Supply characteristics

Type     DAE-RB/Ro8-24V
Recommend voltage   VDC 24
Voltage limits Including ripple VDC 22...30
Nominal input current Voltage 24 VDC mA 175
Power dissipated When all relays are ON W 4.20
Protection Against reverse polarity   None



Relay output characteristics

Type     DAE-RB/Ro8-24V
Relay type     RAS-24-15
Relay outputs count     8
Contact type     NO, NC
Current consumption 24 VDC mA 15
Switching parameters
24 VDC
120 VAC
250 VAC
A
A
A
15
15
10



Phisical characteristics

Type     DAE-RB/Ro8-24V
Dimensions
Width
Height
Length
mm
mm
mm
85
20
150
Weight   gr 148
PCB
FR4
Height
Layers
Metalized holes
HAL
White stamp
Solder mask

mm





Yes
1.5
2
Yes
Yes
Yes
Yes
Mounting holes diameter inner side mm 3
Leds
Relays (green)
Power (red)

Yes
Yes



Single relay channel



How to connect inductive loads
